€1,375,000

*

Price includes full World Cruising specification

* JAN 2024

Kraken 50

Navigation

When it comes to equipment specification we’re raising the standard here too. All Kraken’s come loaded with the equipment we know you’ll want and need.

All other boat builder’s ‘standard’ will require the owner to add another 20-40% to the cost of the boat to bring it up to a reasonable specification for the task of world cruising.

At Kraken, our standard means you’ve already got everything and you don’t need to spend another Dollar, Euro or Pound to sail off the delivery dock to anywhere in the world.

Here's just some of the equipment you get, you’d never expect as standard

Hover over an item for more information on the features included with our Full World Cruising Specification, standard on every Kraken. To see everything included, check out the full specification at the link below.

Select an item for more information on the features included with our Full World Cruising Specification, standard on every Kraken. To see everything included, check out the full specification at the link below.

Generator

Kohler generator including sound shield for quiet operation

Webasto diesel heating system throughout all cabins.

This tank to tank fuel polishing and transfer system eliminates contaminate from all fuel tanks.

Dual headsail Solent rig for easy handling and performance at all points of sail. The ultimate long-distance cruising rig.

Kraken dingy davits with electric operation, made from Stainless steel.

Fully gimballed, GN Espace OceanChef 3 electric induction hob and oven.

Provides a far superior level of monitoring and capacity to set alarms and bespoke equipment and lighting requirements.

Full electronic package for both external and internal navigation stations: Garmin Autopilot station x 2, Garmin 9” screen GPS plotter/multifunction displays x 2, Garmin VHF radios x 2, Garmin wind, speed depth sounder x 2

5000 lts per hour bilge pump and sensor in the main bilge to prevent build-up of water in emergency water ingress situations.

Solas offshore flare pack

Veco Frigomar Full tropical air-conditioning system.

Hydromaster Watermaker.

Side Power 24V tunnel bow thruster.

Viking liferaft sized to suit your yacht size and layout.

Highfield Aluminium/Hyperlon Rib Yamaha outboard motor.

Soft top, tubular stainless steel bimini with Ferrari Stamoid top. Includes removable forward panels, fitted bimini lights and additional flexible screens to fully enclose the cockpit.

All six Harken cockpit winches are two speed electric and manual operation.

Stripper dual blade rope and weed cutter on prop shaft.

Textilene and open cell ‘stay dry’ cockpit cushions throughout cockpit

Stainless steel fish bone swim and diving ladder to swim platform at stern.

6 x size 8 inflated fender plus 4 x 15m and 2 x 10m 22m polyester mooring lines

Equipment you get, you’d never expect as standard

Hover over an item for more information on the features included with our Full World Cruising Specification, standard on every Kraken. To see everything included, check out the full specification at the link below.

Select an item for more information on the features included with our Full World Cruising Specification, standard on every Kraken. To see everything included, check out the full specification at the link below.

Generator

Kohler generator including sound shield for quiet operation

Webasto diesel heating system throughout all cabins.

This tank to tank fuel polishing and transfer system eliminates contaminate from all fuel tanks.

Dual headsail Solent rig for easy handling and performance at all points of sail. The ultimate long-distance cruising rig.

Kraken dingy davits with electric operation, made from Stainless steel.

Fully gimballed, GN Espace OceanChef 3 electric induction hob and oven.

Provides a far superior level of monitoring and capacity to set alarms and bespoke equipment and lighting requirements.

Full electronic package for both external and internal navigation stations: Garmin Autopilot station x 2, Garmin 9” screen GPS plotter/multifunction displays x 2, Garmin VHF radios x 2, Garmin wind, speed depth sounder x 2

5000 lts per hour bilge pump and sensor in the main bilge to prevent build-up of water in emergency water ingress situations.

Solas offshore flare pack

Veco Frigomar Full tropical air-conditioning system.

Hydromaster Watermaker.

Side Power 24V tunnel bow thruster.

Viking liferaft sized to suit your yacht size and layout.

Highfield Aluminium/Hyperlon Rib Yamaha outboard motor.

Soft top, tubular stainless steel bimini with Ferrari Stamoid top. Includes removable forward panels, fitted bimini lights and additional flexible screens to fully enclose the cockpit.

All six Harken cockpit winches are two speed electric and manual operation.

Stripper dual blade rope and weed cutter on prop shaft.

Textilene and open cell ‘stay dry’ cockpit cushions throughout cockpit

Stainless steel fish bone swim and diving ladder to swim platform at stern.

6 x size 8 inflated fender plus 4 x 15m and 2 x 10m 22m polyester mooring lines

Design Specification

Click the button below for a full, detailed specification of the Kraken 50.

  • Length Overall 50 ft
  • Waterline Length 44.86 ft
  • Beam Overall 14.76 ft
  • Beam Waterline 12.47 ft
  • Draft 7.54 ft
  • Air Draft 81.35 ft
  • Displacement 41,888 lbs
  • Ballast Weight 14,330 lbs
  • Ballast Ratio 34.2%
  • Sail Area 1444.52 sq.ft
  • Sail Area Displacement Ratio 19.2
  • Engine Power 80 HP
  • Fuel Tanks (3 tanks) 223 us gal
  • Water Tanks (2 tanks) 148 us gal
  • CE Certification RCD Category 'A' Ocean
  • Length Overall 15.24 m
  • Waterline Length 13.68 m
  • Beam Overall 4.50 m
  • Beam Waterline 3.80 m
  • Draft 2.30 m
  • Air Draft 24.80 m
  • Displacement 19,000 kg
  • Ballast Weight 6,500 kg
  • Ballast Ratio 34.2%
  • Sail Area 134.2 sq.m
  • Sail Area Displacement Ratio 19.2
  • Engine Power 59 kW
  • Fuel Tank 845 L
  • Fresh Water Tanks 560 L
  • CE Certification RCD Category 'A' Ocean
Undoubtedly the best blue water sailing yacht in production today
- John Kretschmer
Beautiful yacht and a fantastic design, Excellent sail!
- Peter Nielsen
Sail Magazine

Build Specification

10 Features included with every Kraken

One piece hull and integral ZERO keel

All Kraken’s comprise of a one piece hull and integral Zero Keel which houses a sealed lead ballast bulb.

The hull lay up is built using 17-22 layers of composite engineered fabrics bonded together by vinyl-ester resins. The general hull thickness is a minimum of 15mm. Aramid fibre composites (Kevlar) is also used in all impact areas, the bow stem, the front of the keel and the keel base.

The hull topsides incorporate 25mm closed cell foam, the FRP foam sandwich which extends from 40cm (16″) above the waterline to deck level. This structure improves insulation and overall hull form rigidity. A Kraken’s hull and structures exhibited no flexing.

The rudder and steering system is the most vulnerable element of any yacht, in recognition of this, the Kraken engineering and design team have developed the world’s safest rudder and steering system.

The rudder is fully protected and supported by a full length skeg with an integral stainless steel beam, which has at its foot the first rudder bearing. The 3 ¾” (82mm) rudder stock has a second (main) bearing at its centre as it passes into the hull at the transom. This bearing is accessible and removable from the inside of transom. Even at sea!

The rudder stock has a removable third bearing at the top inside the stern lazarette. The rudder itself, comprises an integral stainless steel armature, which is welded to the stainless steel rudder stock. It is then finished and faired using FRP/vinyl-ester.

Solid crash zone at bow waterline

A heavily reinforced ‘solid crash zone’ below the anchor chain locker, incorporating high density closed cell foam with substantial reinforcements in aramid fibres extends from above the waterline to 40cm below it. This solid area runs through to the first sealed bulkhead providing maximum collision protection.

All longitudinal and latitudinal structures are individually bonded in during the hull layup stages with no prefabricated structural components. The video below explains how the structural frames and stringers work on a Kraken Yacht.

Bulkheads

All bulkheads are vacuum infused FRP with 25mm structural foam core. No plywood is used. There are two watertight sealed bulkheads forward, one between the anchor locker and the forward lazarette and a second one between the forward lazarette and the interior. A further watertight, sealed bulkhead at the stern divides the interior from the aft lazarette.

The structural bulkheads are fully bonded into the hull stringers & frames.

Deck Structure

The deck is vacuum infused FRP using composite fibres and vinyl-ester resin with a structural foam core. This provides high levels of rigidity and insulation.

The deck structure is single-skin FRP around the base of all deck fittings.

The outside finish of the deck is panelled non-slip gelcoat with Flexiteek side decks and cockpit sole as standard.

Integral Kraken moulded safety bulwark

All Kraken have an Integral moulded safety bulwark with concave internal surface for superior deck safety at sea.

Saloon/coach roof windows

Ultra-high impact-resistant laminated glass is used in the wrap-around saloon windows and port lights so that accidental damage will not result in water ingress to the interior.

Hull Finishes

Standard hull gelcoat colour is Signal White. Many colour options available at owners choice.

Double line boot top in Alwgrip to owners colour choice.

3 x coats of primer and sealer applied below the waterline before standard antifoul in dark grey, other colour choices available.

Build standard and certification

All Kraken’s are designed and built to exceed ISO CE RCD Category ‘A’

Interior Video
Interior Video
Part 1 - Saloon
Interior Walkthrough
Interior Video
Interior Video

Part 2 - Galley
Interior Walkthrough

Interior Video
Interior Video

Part 3 - Cabins
Interior Walkthrough

Interior Video
Interior Video

Part 4 - Walk-in Engine Room
Interior Walkthrough

Key Features

All of our yachts include some of the best-designed features available on a new sailing yacht today and the Kraken 50 is no different.

The Zero Keel™
The Alpha Rudder™
Build Structure

The Zero Keel™

Zero bolts, zero risk. Each Kraken yacht includes our fully integral ZERO™ Keel to protect against floating debris and grounding.

The Alpha Rudder™

Each yacht includes the ALPHA™ Rudder System, incorporating a full-length skeg-hung rudder and in-water removable rudder bearings.

Build Structure

All Kraken yachts are built with a substantial interior structure to ensure keel delamination and failure cannot occur.

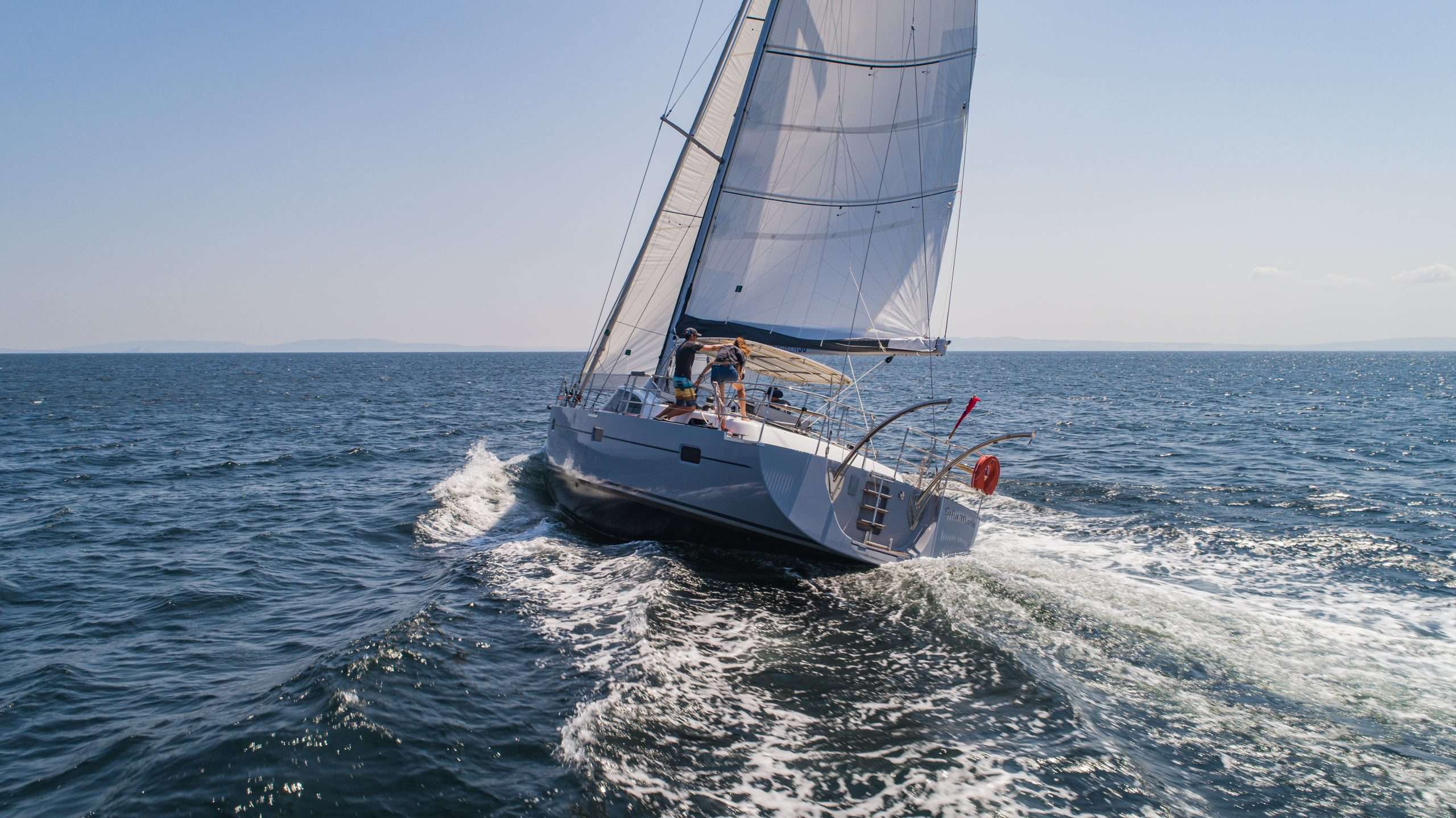

The Exterior

Exterior Video
Exterior Video

Test Sail
Skymark

Exterior Video
Exterior Video

Solent Rig
Butterfly

Exterior Video
Exterior Video

Deck Walkthrough
Part 1

Exterior Video
Exterior Video

Deck Walkthrough
Part 2

Exterior Video
Exterior Video

Deck Walkthrough
Part 3

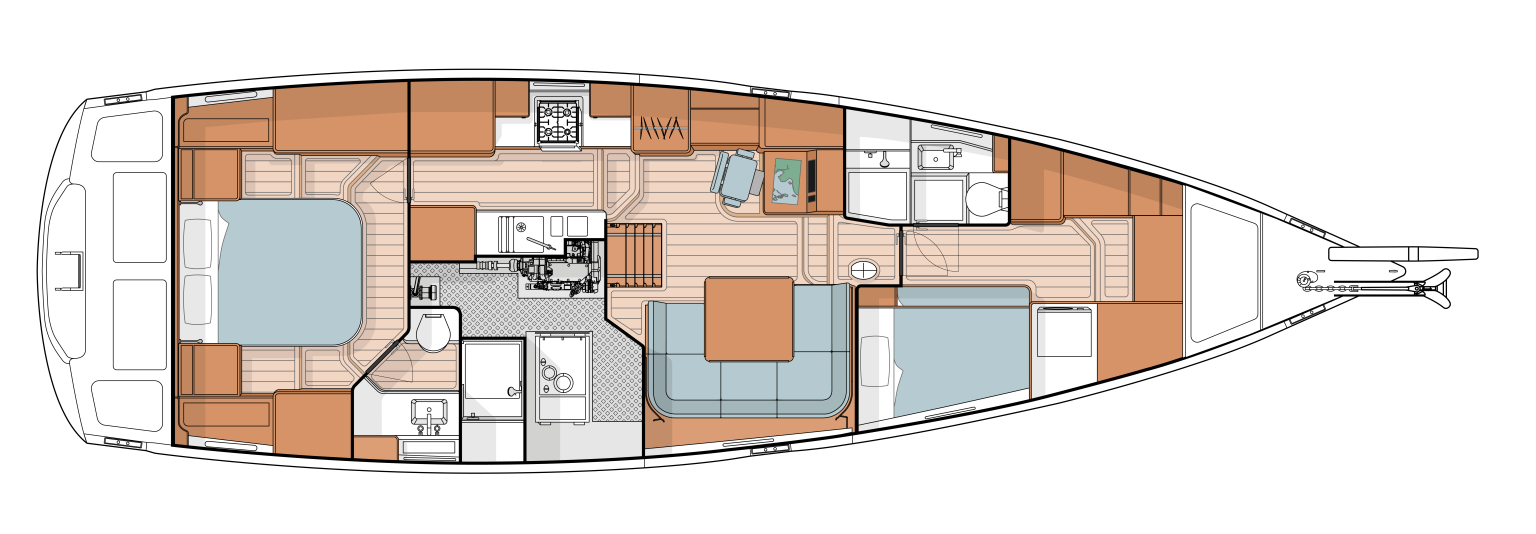

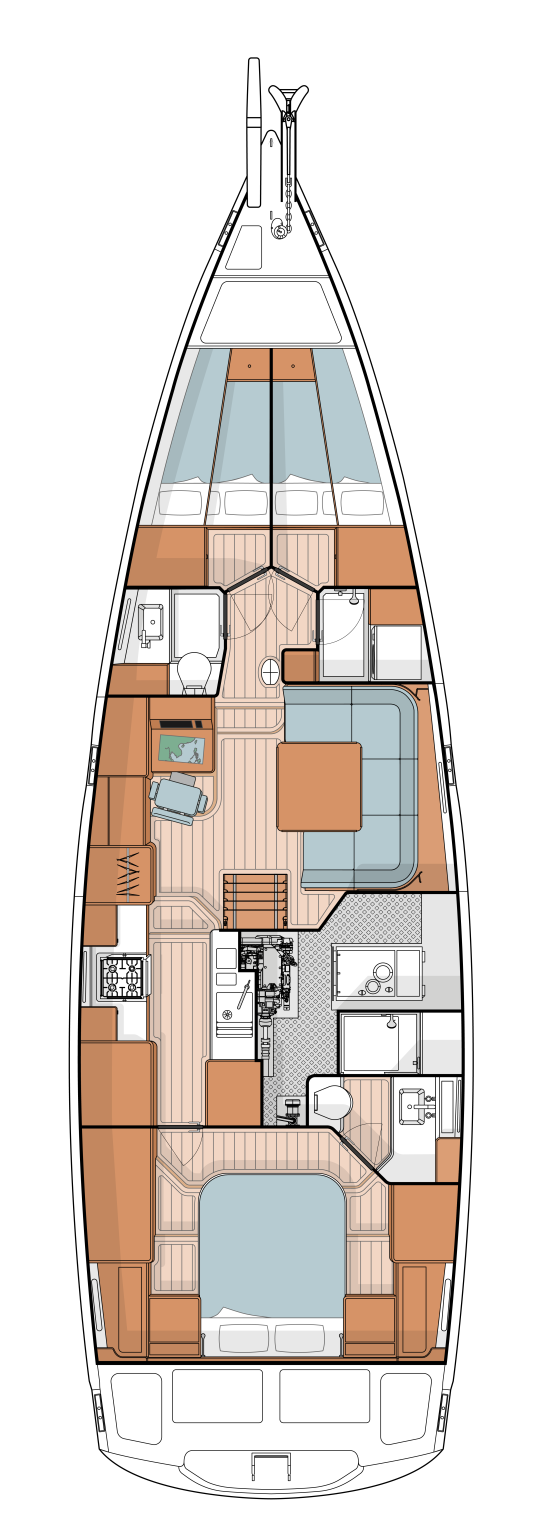

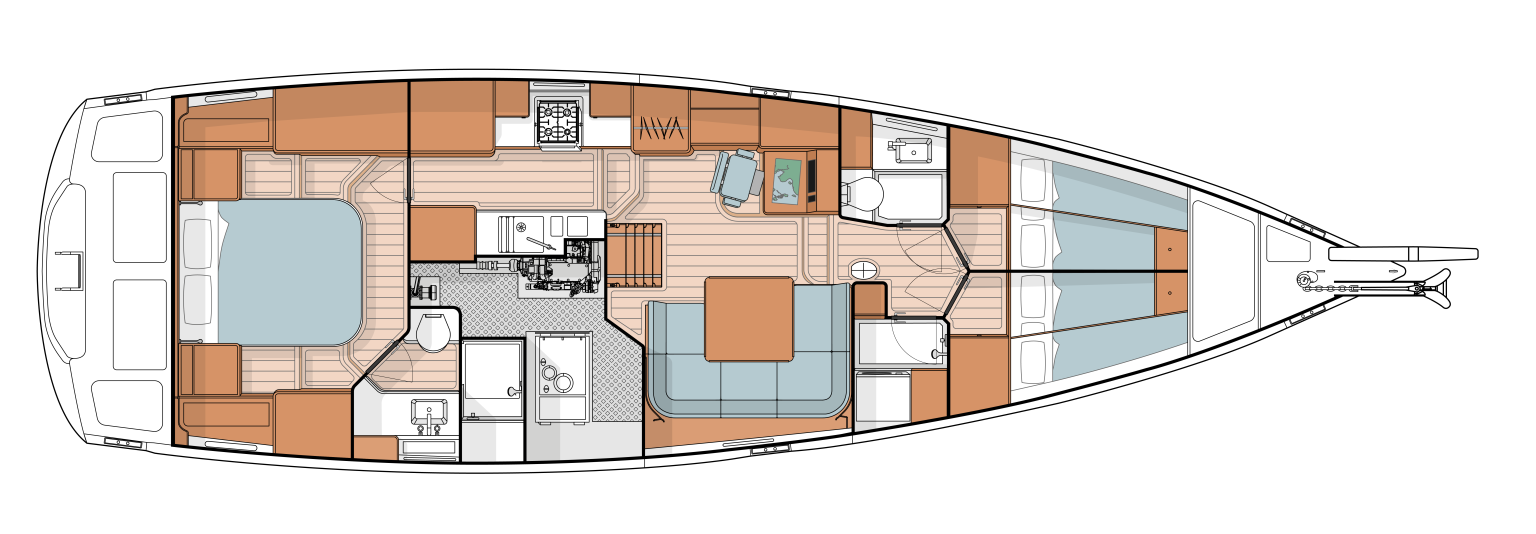

Layout

We have 4, 5 and 6 berth layouts are available.
